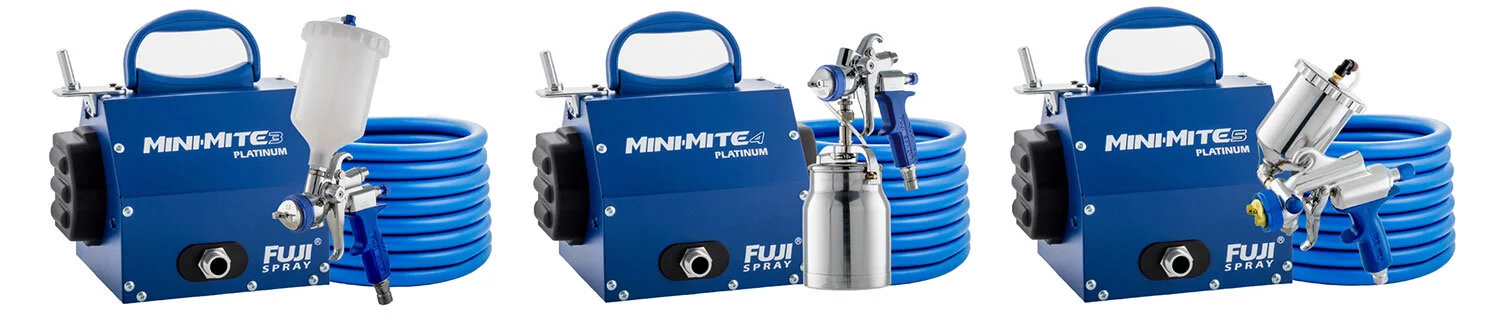

Comparing the Fuji Mini-Mite Platinum 3, Platinum 4, and Platinum 5 Spray Systems

Fuji Mini-Mite 3 Reviews and Awards

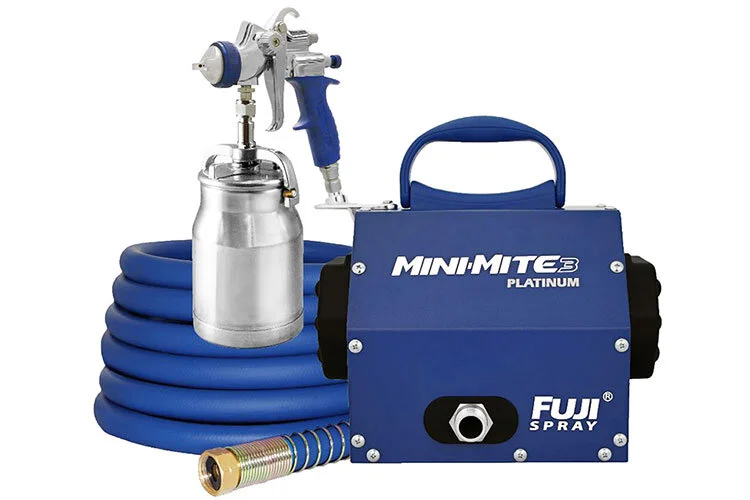

 The 3-stage (6.5 PSI) Fuji Mini-Mite 3 has consistently won top ratings in comparison tests for serious woodworkers. Based on rigorous comparison tests of 14 HVLP spray systems, Fine Woodworking ranked the Mini-Mite 3 awards as “Best Overall” choice, plus the “Best Value.”

The tester rated the Mini-Mite 3 excellent on both ease of adjustment (with the convenient side-mounted fan width adjustment) and excellent for spray quality. This was in Sept. 2014, before Fuji improved the Mini-Mite 3 still further to make the current Platinum model.

The Mini-Mite 3 Platinum won the same awards in March 2017, based on comparison tests at Wood Magazine. Not only did the Mini-Mite 3 Platinum earn the Top Value award — it was also one of Wood Magazine’s Top Tools of the Year.

Comparing the Mini-Mite 3 Platinum with 8 other HVLP spray systems, this review rated each system on ten different factors — including how well each sprayed latex paint, lacquer, and water-based finishes.

The Mini-Mite 3 Platinum earned an A on each of the ten factors, except for a B+ for spraying latex. (The Fuji Q4 was the only tested spray system to earn an A on all ten — confirming the recommendation to step up to a 4-stage system if you want to spray latex much of the time.)

Wood Magazine tested the Mini_Mite 3 turbine noise at a distance of 10 feet (closer than the recommended 15 to 20 feet) at 78 decibels — about twice as loud as the 59-decibel Platinum Q3 — but less than an average garbage disposal.

Do these awards for the Mini-Mite 3 means it’s a better choice than the Mini-Mite Platinum 4 and 5 systems? No, of course not. The added fans make the turbines a bit louder, but if you need the extra power of the 4- and 5-stage Mini-Mite systems, be assured that the same features and quality make them winners too. (If you’re not sure of the power you need, check out the page on How to Choose an HVLP Spray System or better yet, just call me!)

Fuji Mini-Mite Platinum Advantages

The Fuji Mini-Mite Platinum spray systems keep the patented Fan Pattern Control that provides smooth adjustments in spray pattern shape and size — from a wide oval to a circle. The T-series spray guns that come with these systems, the T70 and T75G, put the control knob on the side of the spray gun near the front, where it’s very easy to reach. So does the redesigned Fuji Gxpc spray gun. Learn more —> about the Fuji T70, T75G, and Gxpc spray guns.

All three Fuji Mini-Mite Platinum spray systems include patented devices to minimize both noise and heat.

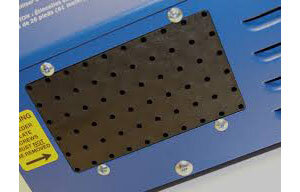

• A Heat Dissipation Box keeps the turbine cooler, extending its life. This box, located at the rear of the case, sends excess heat out evenly through 60 holes. This means there’s no added hiss or loud whistling noise, nor any blowing around of dust.

• A Noise Reduction Cover muffles incoming air by drawing it in through a large rear aperture, then through specially designed “Finger Slots.”

All system parts are designed and built for comfort, ease of use, and durability, and carry a 24-month limited warranty on parts and labor.

• The spray guns use stainless steel for needles and fluid passages, and have insulated ergonomic handles.

• The hose comes with quick-connect fittings at both ends, plus a convenient air flow valve at the gun end — so you don’t have to walk back to turbine to adjust or shut off the air.

• The turbine metal cases are powder coated, and include spray gun mounts for storing or resting the gun when not in use.

• The friction-fit air filters are quick to change, washable and reusable.

The turbines are also available in 220v for use in other countries.

Three Mini-Mite Platinum Models

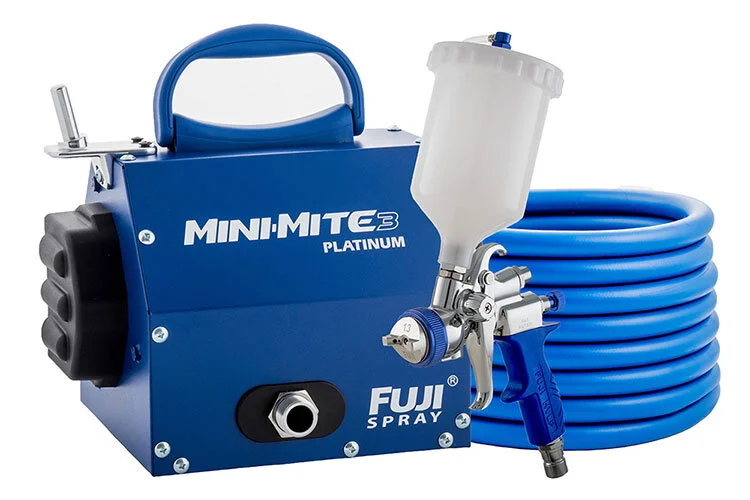

All three use the same spray guns, have the same great features, simply vary in the number of turbine fans. For example, the 3-stage Mini-Mite Platinum 3 uses 3 fans (for 6.5 PSI).

• The 4-stage Mini-Mite Platinum 4, at 9 PSI, is about 20 percent more powerful than the 6.5 PSI Mini-Mite Platinum 3. Recommended if you plan to spray large areas, or might spray latex or other heavy finishes.

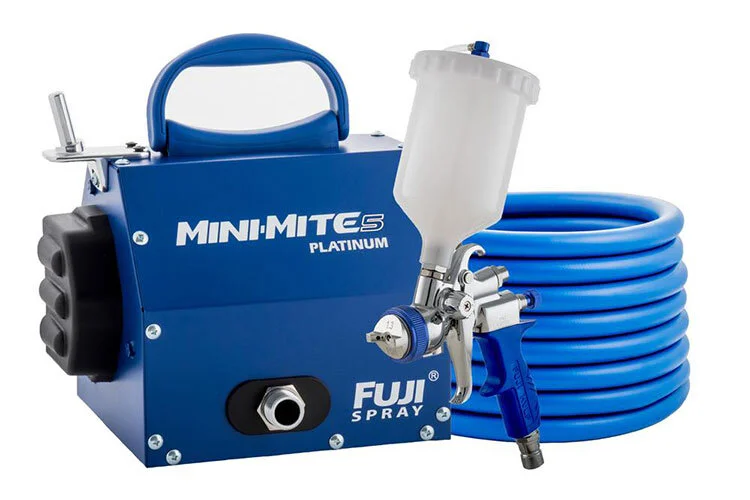

• The 5-stage Mini-Mite Platinum 5 (9.5 PSI) is about 20 percent more powerful than the Mini-Mite Platinum 4. It sprays an area about 3 times faster than a Mini-Mite Platinum 3. Check out two videos of spraying a house with the Mini-Mite 5.

• Now the Mini-Mite 5 also has a turbine motor that runs cooler than ever. This extends turbine life and adds user comfort.

Fuji also includes a Bonus of 5 accessories with this 5-stage spray system: a 6-foot whip hose, 19-piece spray gun cleaning kit, extra pair of turbine filters, a wet film gauge, and an “Always Measure” booklet.

I include bonus items, and offer money-saving packages for each Mini-Mite system. Each package adds useful accessories and maintenance parts, and I assemble custom packages as needed.

Compare Mini-Mite Platinum spray systems.

Click on the chart for an enlarged view.

Mini-Mite Platinum Spray Gun Choices

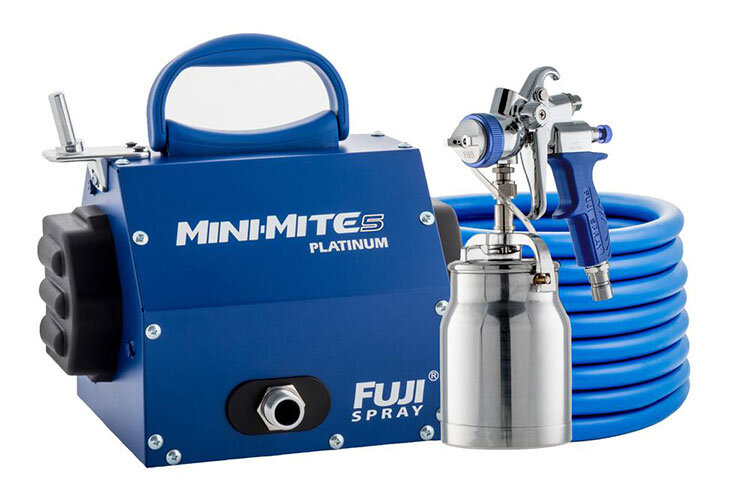

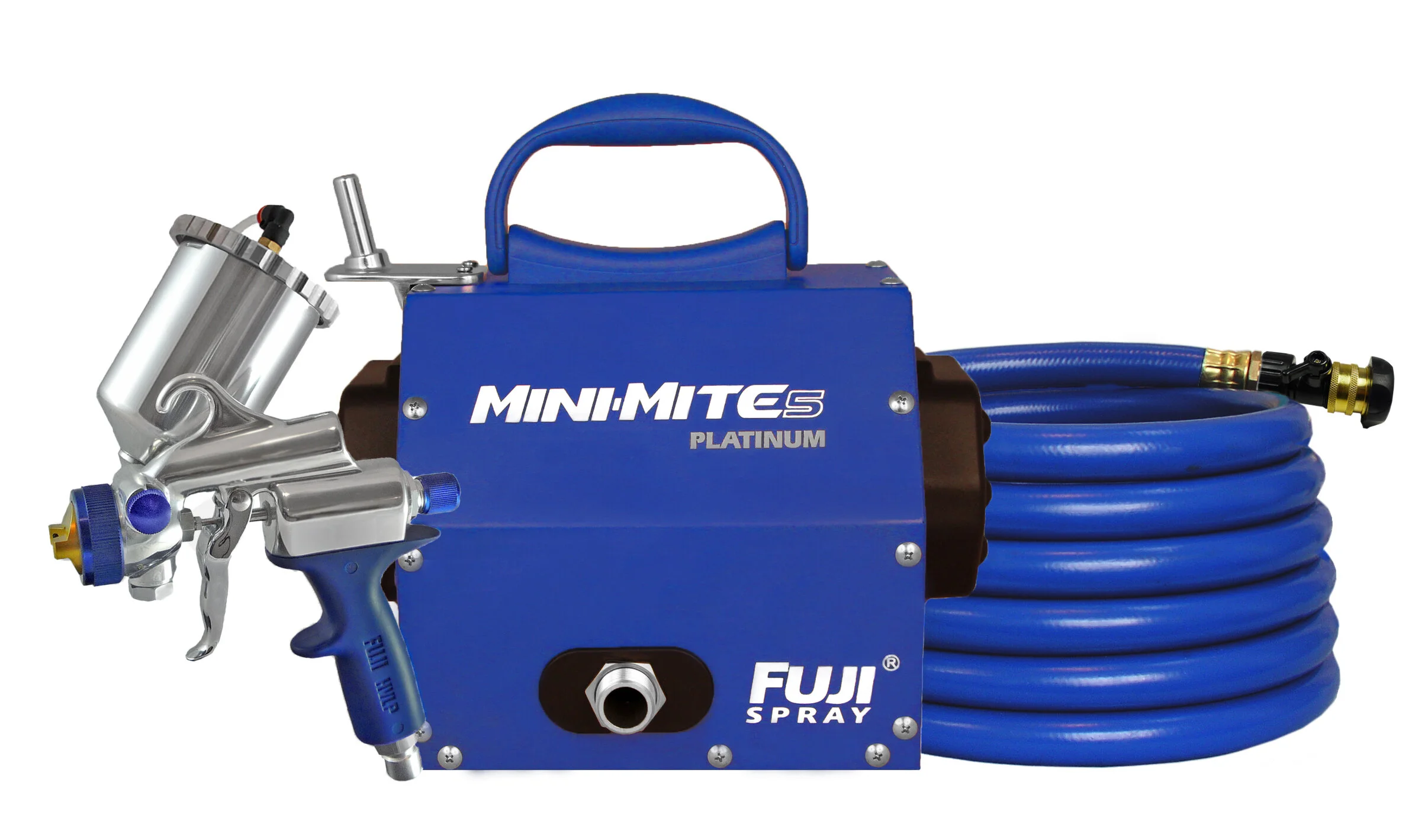

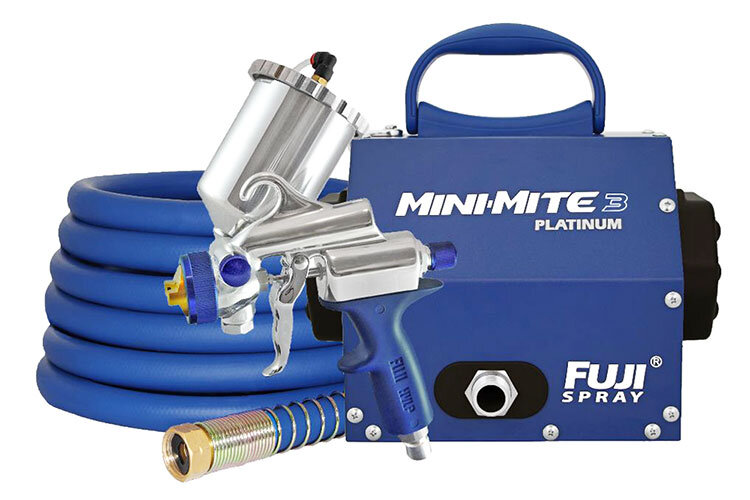

When you purchase a Mini-Mite Platinum Spray System, you have the choice of any of three excellent spray guns: the Fuji T70 bottom-feed gun, and the gravity-feed T75G and Gxpc spray guns. The best one depends on your purpose. Learn more —> How to Choose the Best Fuji Spray Gun.

Bonus Items When You Order Here

Bonus Items I add when you purchase a Fuji Mini-Mite Spray System here at Phelps Refinishing:

• FREE UPS Ground shipping to anywhere in the contiguous US. (Priority Mail shipping available to Hawaii and Alaska, call or email for shipping quote).

• FREE answers to any refinishing questions you might have via email or phone. Take advantage of my 40 years of experience as a refinisher.

• FREE Spray Gun Cleaning Kit

• FREE coupon for Ultrasonic Spray Gun Cleaning

• FREE 10 Pack of Paper Strainers when you choose a Fuji T70 or T75G Spray Gun System

• FREE 3 Pack Worthy Mini Strainers when you choose a Fuji T70 Spray Gun System

• FREE 3 Pack Inline Gravity Feed Mesh Strainers with the Fuji T75G Spray Gun System

• FREE Tack Cloth

• FREE Micro-Mesh 1500 3"x4" Soft Touch Pad

• FREE GFH1000 Gravity Spray Gun Stand with the Fuji T75G packages

Fuji includes with each Mini-Mite Platinum System:

• Turbine with Fuji Gun Dock Spray Gun Holder

• Professional Non-Bleed Spray Gun (T70, T75G, or Gxpc) with stainless steel fluid passages,and patented side mounted Fan Pattern Control

• 25' Hi-Flex Hose with Quick-Connect fittings at both ends, plus air control valve at gun end

• Instruction Manual

• Wrench and cleaning brush

• #4 Ford Viscosity Cup

• 24-Month Warranty on parts and labor

• And for the Mini-Mite 5, adds 5 bonus items:

  • Extra pair of #7224-2 turbine filters

  • 6-foot ultra flexible “whip hose” for maximum maneuverability

  • Deluxe 19-piece Fuji spray gun cleaning kit

  • Wet film gauge

  • “Always Measure” booklet

Special Mini-Mite Packages

You can save on shipping costs by ordering the accessories and extra parts you want at the same time as the spray system. In addition to the free bonus items listed above, that come with each system, the packages I offer add any of the following that you need:

• Extra air cap(s) in a different size — packages add 1, 2, 3, 4, or 5 extra air cap setups —for spraying a wider range of finishes. Learn more —> Help choosing air cap sets!

• Extra pair of turbine filters. (Fuji recommends having an extra pair on hand, since washing and drying them is important for maintaining your system.)

• 6-foot whip hose, for easier maneuverability in tight spaces.

• Spray cup maintenance and replacement parts

• Other extras depending on the Mini-Mite turbine and spray gun

Custom Packages available — call or email to arrange this.

The exact contents of each Mini-Mite package depend on the spray gun you choose. You can find the charts on the Mini-Mite product page, categorized by whether you choose the T70 bottom-feed gun, the T75G gravity gun, or the GXPC rotating gravity cup gun.

Minimalist Mini-Mite Package: Just the Mini-Mite Turbine!

If you just want a Mini-Mite turbine — yes! I do sell the Fuji Mini-Mite turbines separately, along with HVLP hoses, spray cups, and all the accessories you need.

Air Cap Setups for Mini-Mite Spray Systems

The Air Cap Setups for Mini-Mite Platinum Spray Systems depend on the spray gun you choose. The Fuji T75 and T75G spray guns come with a 5020-#3 air cap setup installed, and the Fuji Gxpc spray gun comes with a 8050-#4 air cap setup installed. I will substitute any other size of your choice if you specify this with your order. It will be shipped from Buffalo, NY — usually within 7 to 10 days. I have another page here on the site with help choosing air cap setup sizes for specific purposes.

And of course, call me if you have questions.

See the Fuji Mini-Mite Platinum products page for more details and to order a system. The package offers are there too.

Fuji Manuals for Mini-Mite Platinum Systems

Manual for Fuji Spray Systems with T70 or T75G Spray Gun

Manual for Fuji Spray Systems with Gxpc Spray Gun

Call me at 800-377-5662 — Monday through Friday, 9 AM to 5 PM DT — if you’d like personalized advice on how to choose exactly what you need, with your budget in mind. You can also email me photos if that will help me understand your needs, at Roger@PhelpsRefinishing.com.
